Description

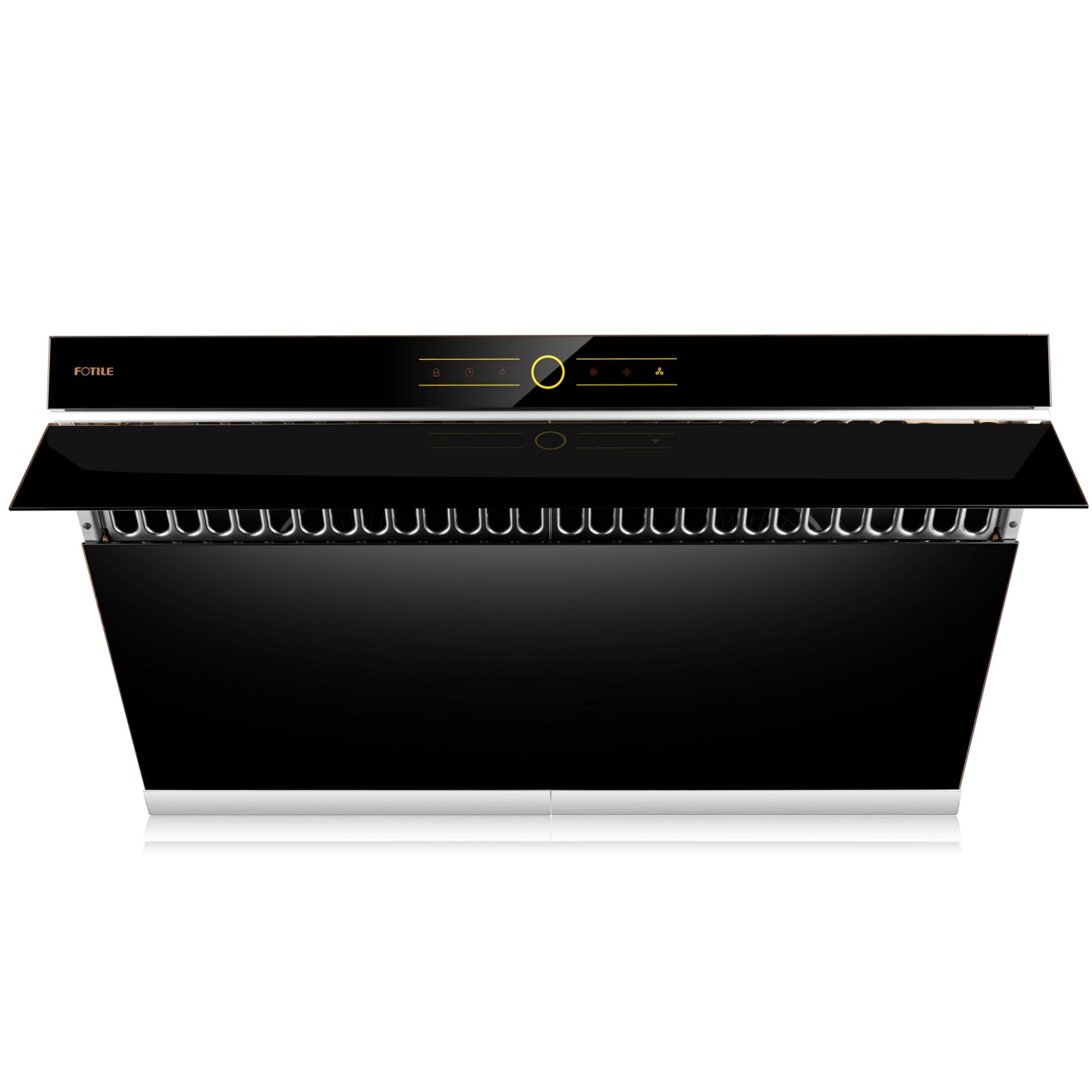

Fotile Slant Vent Series 36 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Touchscreen in Onyx Black Tempered Glass (JQG9001)

FOTILE Slant Vent Series, 36 In. wall mount under-cabinet ducted range hood with 850 CFM, not only provides excellent performance, but looks great as well. With an automatic opening baffle plate when the unit is powered on, it will open to a 90 degree angle capturing smoke and fumes before they escape.

A large 7.2sf coverage area easily covers all 5 6 burners on your cooktop guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease.

The JQG9001 is capable of normally producing 530 CFMs, but with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 850 CFM and lowest noise level 39dB. An elegant Touch Screen control panel with a delay function that lets the hood work for 2 minutes after you are done cooking to ensure all the smoke and odors are removed from your kitchen. There is also a screen lock function that prevents the unit from mis operation while you are cleaning the unit. Color Onyx Black

Features:

• 90 degree Automatic Open Close Fume Baffle Plate prevents the smoke from spreading in your kitchen and protects you against any harm.

• 36 inches Extra-wide Fume Inlet ensures even suction pressure at every angle easily covering the cooktop.

• 7.2 sq. Ft. Super-large Coverage Area easily covers all the burners on your cooktop.

• Due to our WhisPower Technology, FOTILE is able to capture a higher CFM than actually published by excelerating smoke and grease extraction with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.

• Double Centrifugal Fans ensures strong power and fluent extraction.

• Super Quiet Operation, Lowest speed has 39dB noise level; Mid speed has 49dB; High speed has 54dB

• A Delay Function lets the Range Hood work for several minutes after cooking to ensure all the smoke and odor are removed from your kitchen.

• Screen Lock Function allows you to clean your Range Hood without accidentally turning it on.

• Powerful Lights, light up the whole cooking area and helps you see the color of the food you are cooking.

• Dual Grease Collection Cups with more volume, decreases the frequency of cleaning.

• Detachable and Dishwasher Safe Dual Oil Filters

•



  Under Cabinet Installation Requires Decorative Plate

  Options:

  • Fotile 4 Decorative Plate for JQG9001, Stainless Steel color (USRHSV36DP04SL)
  • Fotile 4 Decorative Plate for JQG9001, Black color (USRHSV36DP04BL)
  • Fotile  6 Decorative Plate for JQG9001, Black color (USRHSV36DP06BL)
  • Fotile  6 Decorative Plate for JQG9001, Stainless Steel color (USRHSV36DP06SL)

  •

    Wall Mount Installation Requires Decorative Cover

    Options:

    • Fotile  8 Ceiling Decorative Cover for JQG7501 7505 9001, Stainless Steel color (USRHSV3036DC08)
    • Fotile  9 Ceiling Decorative Cover for JQG7501 7505 9001, Stainless Steel color (USRHSV3036EDC09N)
    • Fotile  10 Ceiling Decorative Cover for JQG7501 7505 9001, Stainless Steel color (USRHSV3036EDC10N)

    •

      Model		JQG9001
      Certification		ETL,HVI
      Product Dimensions (W  x D x H)		35 7 8 x 18 1 4 x 17 7 16 – 46 7 16
      Power Supply		120V 60HZ
      Max Static Pressure(Pa)		400Pa
      Speed Setting		3
      CFM(HVI)		230 410 530
      Max. EQUIV.CFM		850*
      Noise Level(sones)		1.2 3.9 6.0
      Noise Level(dB)		39 49.2 54.3
      Illumination(W)		3W × 2 (LED)
      Packing-Box Size(WxDxH) (inch)		43 9 16 × 26 7 16 × 27 3 16
      Motor Power		256W
      Motor		Dual AC Motors
      Oil Cup		Two Oil Cups
      Oil Filter		Removable & Dishwasher Free
      Capture Shield		Auto
      Control Type		Touch
      Delay Shutoff		2min
      Screen Lock		Y
      Oil Filtration Rate		95%
      Odor Elimination Rate		98%
      Installation		Under Cabinet Wall Mount
      Duct Type		Vertical
      Net Weight (lb)		70
      Gross Weight (lb)		91.5
      Warranty		FOTILE is offering five years limited warranty on range hood products. Lifetime limited warranty on motors. From your purchase date, ONE (1) YEARS FULL WARRANTY ON ALL FOTILE RANGE HOOD PRODUCTS AND PARTS AND FOUR (4) YEARS LIMITED WARRANTY ON ALL PARTS OF FOTILE RANGE HOOD PRODUCTS



      USER MANUAL
      SPECIFICATION SHEET
      BROCHURE
      ACCESSORIES LISTS
      JQG9001 DIMENSION
      RANGE HOODS SHEET DIMENSION
      WARRANTY DOCUMENT
